Cable tray not perforated - I4KG60

Smooth surface
Return flanges


ETIM: EC000047


HD Reference
mm
mm
mm
mm 		kg
m 		Stock Unit
- I4KG60.100.080 60 100 0.8 3000 1.500 30 M
- I4KG60.200.080 60 200 0.8 3000 2.170 30 M
- I4KG60.300.080 60 300 0.8 3000 2.770 30 M
- I4KG60.400.100 60 400 1 3000 4.460 30 M

Standard finish

  • Standard finish Stainless Steel 304
Manufactured with protective film.

Fix with:

VM
Toothed round head bolt / flange nut
I6VM
I6V60.200
Joiner
I6V60.200

Technical info

Product datasheet

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

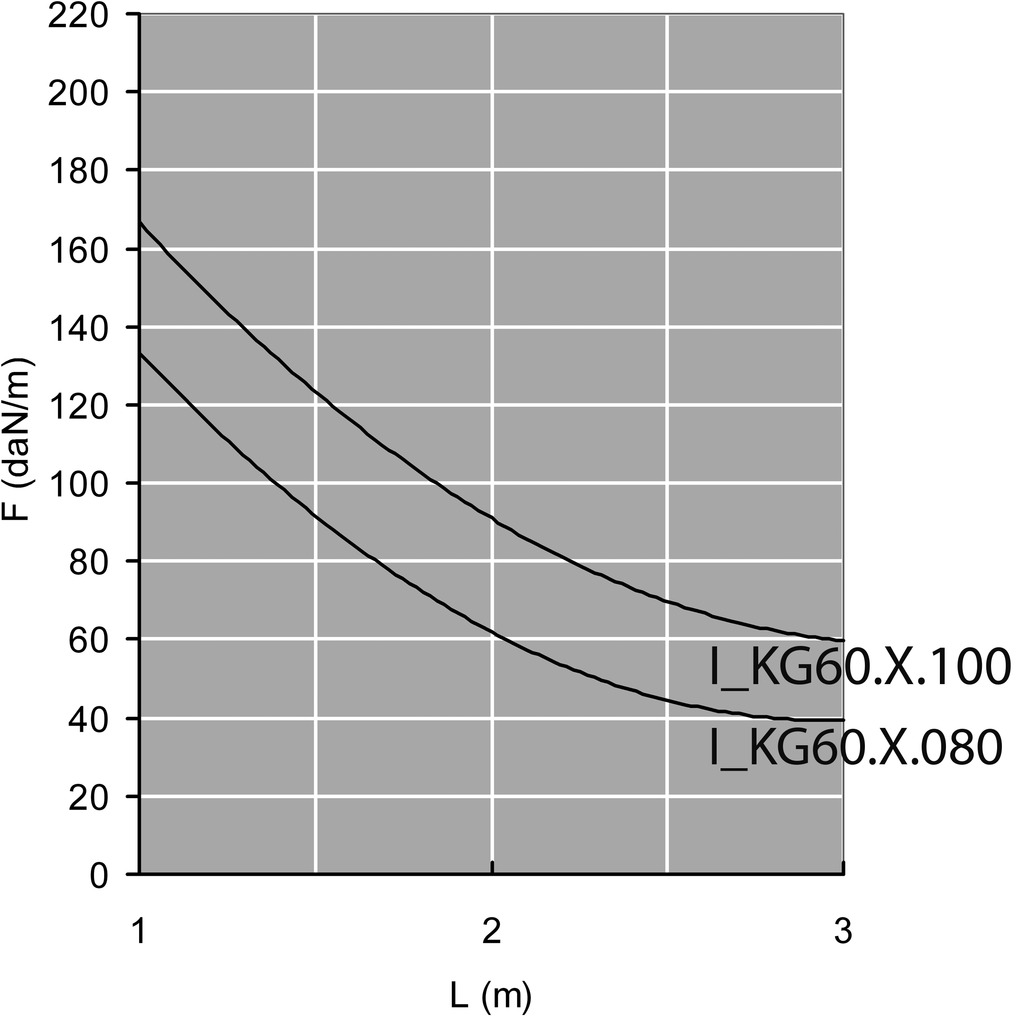

Load diagram

INOXKG60 LOAD DIAGRAM
Graph valid for I4KG60. This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 par 10.3.3 test type III with connection to 1/5 of the span.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
