Wire cable tray for heavy duty - I6VF

Screen: 50x100 mm
Thread: 4.50 mm


ETIM: EC000853


HD Reference
mm
mm
mm
mm 		kg
m 		Stock Unit
- I6VF60.050 60 50 3000 0.690 30 v M
- I6VF60.100 60 97 3000 1.010 30 v M
- I6VF60.200 60 197 3000 1.263 30 v M
- I6VF60.300 60 297 3000 1.660 30 v M
- I6VF60.400 60 397 3000 2.040 30 v M
- I6VF60.500 60 497 3000 2.427 3 v M

Standard finish

  • Standard finish Stainless Steel 316
Pickled and passivated.

Technical info

Product datasheet

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

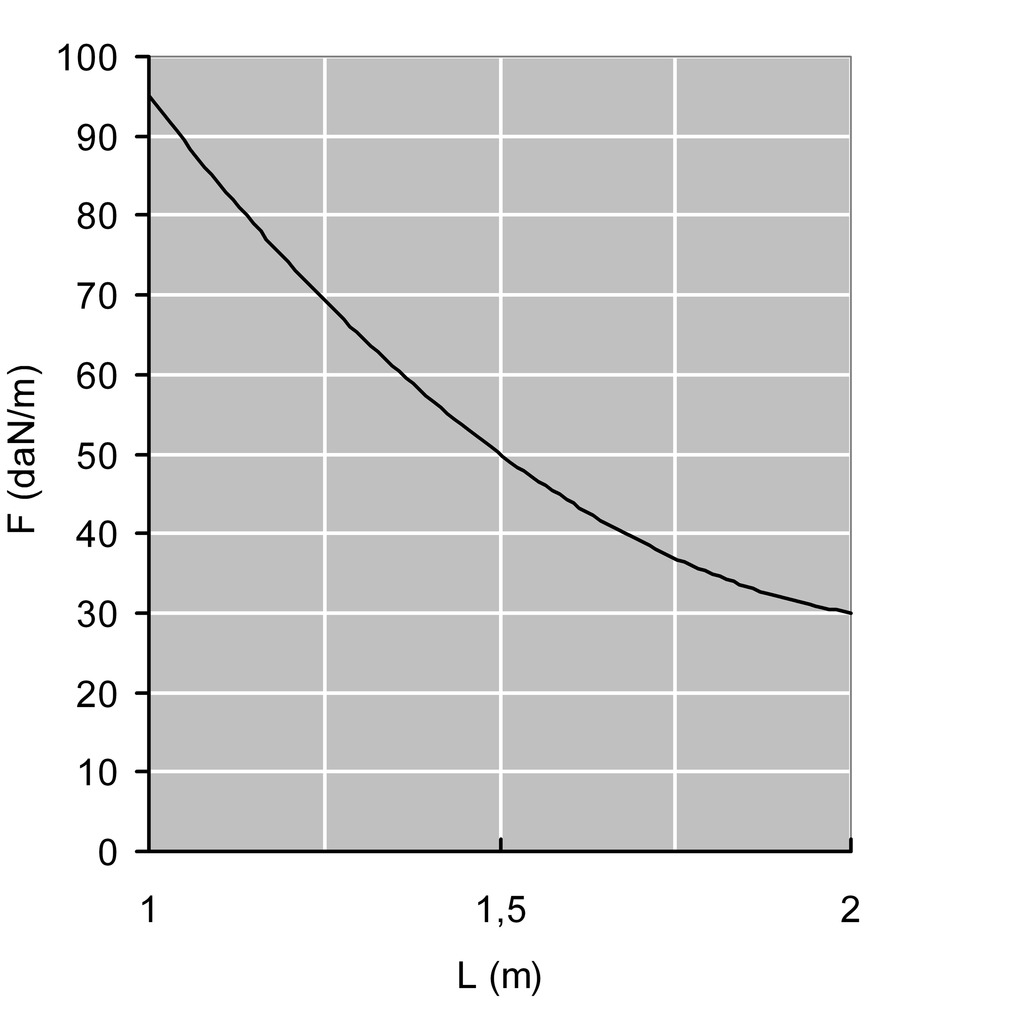

Load diagram

INOXVF60 LOAD DIAGRAM
Graph valid for I6VF60. This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 par 10.3.3 test type III with connection to 1/5 of the span.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
