Industrial cable ladder - HDKLIE


Usable inner height: 55 mm
Rung distance: 250 mm


ETIM: EC000854


HD Reference
mm
mm
mm
mm 		kg
m 		Stock Unit
- HDKLIE200 80 200 6000 4.050 60 v M
- HDKLIE300 80 300 6000 4.330 60 v M
- HDKLIE400 80 400 6000 4.650 60 v M
- HDKLIE500 80 500 6000 4.880 60 v M
- HDKLIE600 80 600 6000 5.030 60 v M

Standard finish

  • Standard finish Hot-dip galvanised

Optional finish

  • Optional finish Duplex system
CHARACTERISTICS
- Partition SLOS35/60 or ZMSLOS35/60 should be fixed to the cable ladder by means of fixing clamp HDBKID25.
TECHNICAL INFORMATION
The side walls are made of steel tubes with section 80 mm x 25 mm. Rungs made of 19 mm tube.
Connection between rungs and side walls by means of a double flange every 250 mm.

Fix with:

HDLVIE
Joiner for HDKLIE
HDLVIE

Technical info

Product datasheet

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

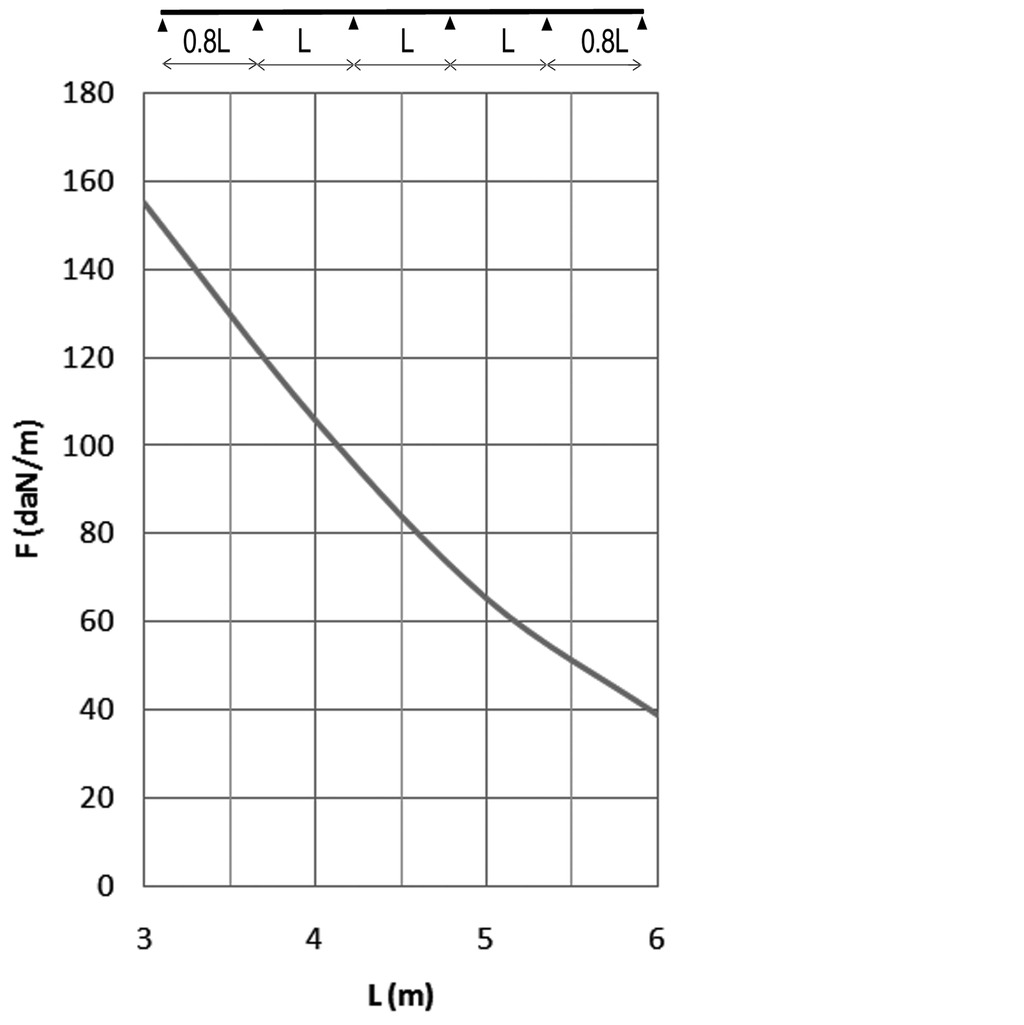

Load diagram

KLIE LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed horizontal loads applied to multiple supports. They comply with IEC 61537 and the end span = 0,8x the span. For spans > 4m, it is advised to add an extra B10.40 and M10 through the side walls and joining plates.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
