Cable ladder DAVID - HDKS60

Tubular side walls.
Perforated C-rungs 15x30
Usable inner height: 45 mm
Rung distance: 250 mm


ETIM: EC000854


HD Reference
mm
mm
mm
mm 		kg
m 		Stock Unit
- HDKS60.200 60 200 6000 2.800 60 v M
- HDKS60.300 60 300 6000 3.080 60 v M
- HDKS60.400 60 400 6000 3.320 60 v M
- HDKS60.500 60 500 6000 3.530 60 v M
- HDKS60.600 60 600 6000 3.870 60 v M

Standard finish

  • Standard finish Hot-dip galvanised

Optional finish

  • Optional finish Duplex system
CHARACTERISTICS
- lightweight
- strong
- rounded tubular side-walls eliminate the risk of cable damage
- hot-dip galvanised as standard
- wrap around joiners with pre-assembled tap bolts ensure a fast secure connection
- rungs are perforated to enable efficient attachment of cables.
- partition (ZMSLOS35) can be fixed to the cable ladder with a sliding nut (GM6) and pan head bolt (HDRB6.10).
TECHNICAL INFORMATION
- Side walls are constructed from tubular section 60 mm x 15 mm.
- C-rungs are fixed at 250 mm intervals.
- Rungs are welded to the side wall of the cable ladder.
- Rungs are alternately placed with openings upwards and downwards.

Fix with:

HDSSU
Joiner for HDKS
HDSSU

Technical info

Product datasheet

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

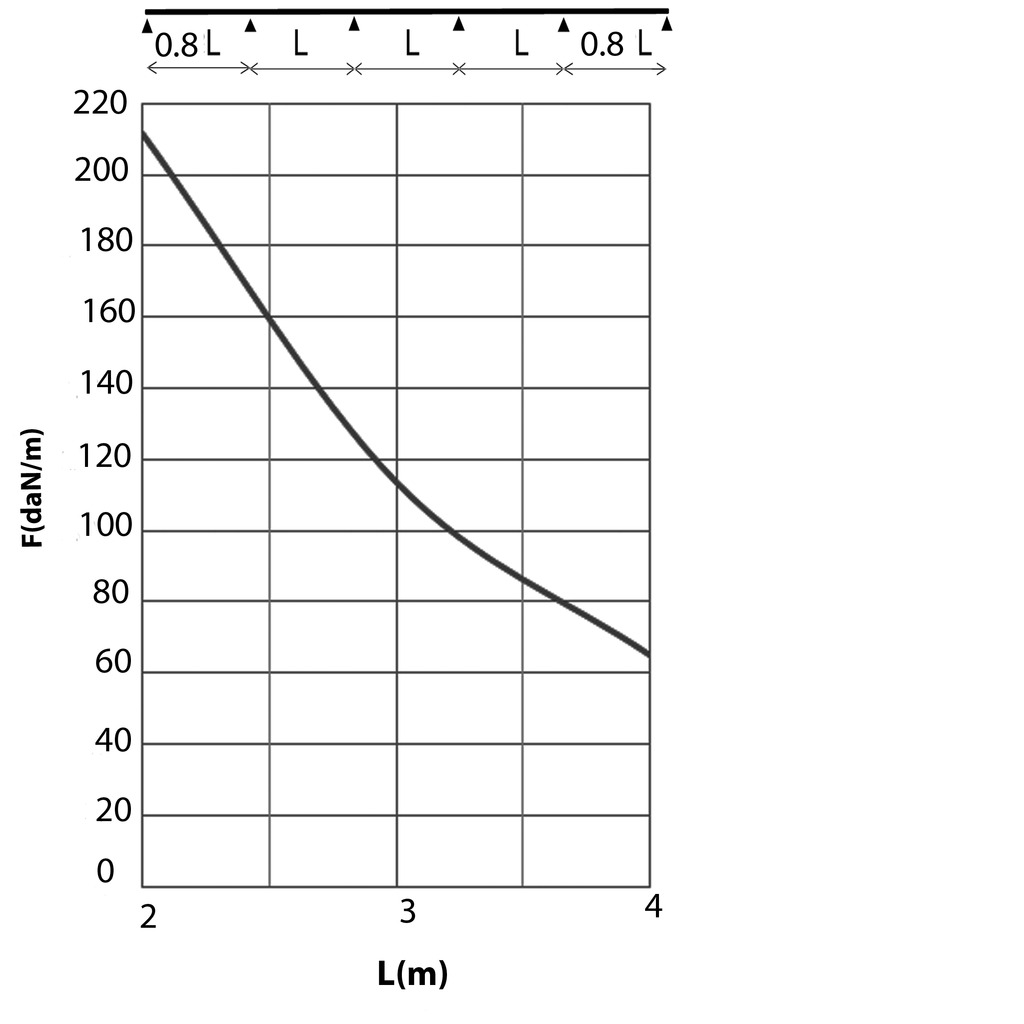

Load diagram

HDKS60 LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed horizontal loads applied to multiple supports. They comply with IEC 61537 with connection to 1/5 of the span and the end span = 0,8x the span.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
