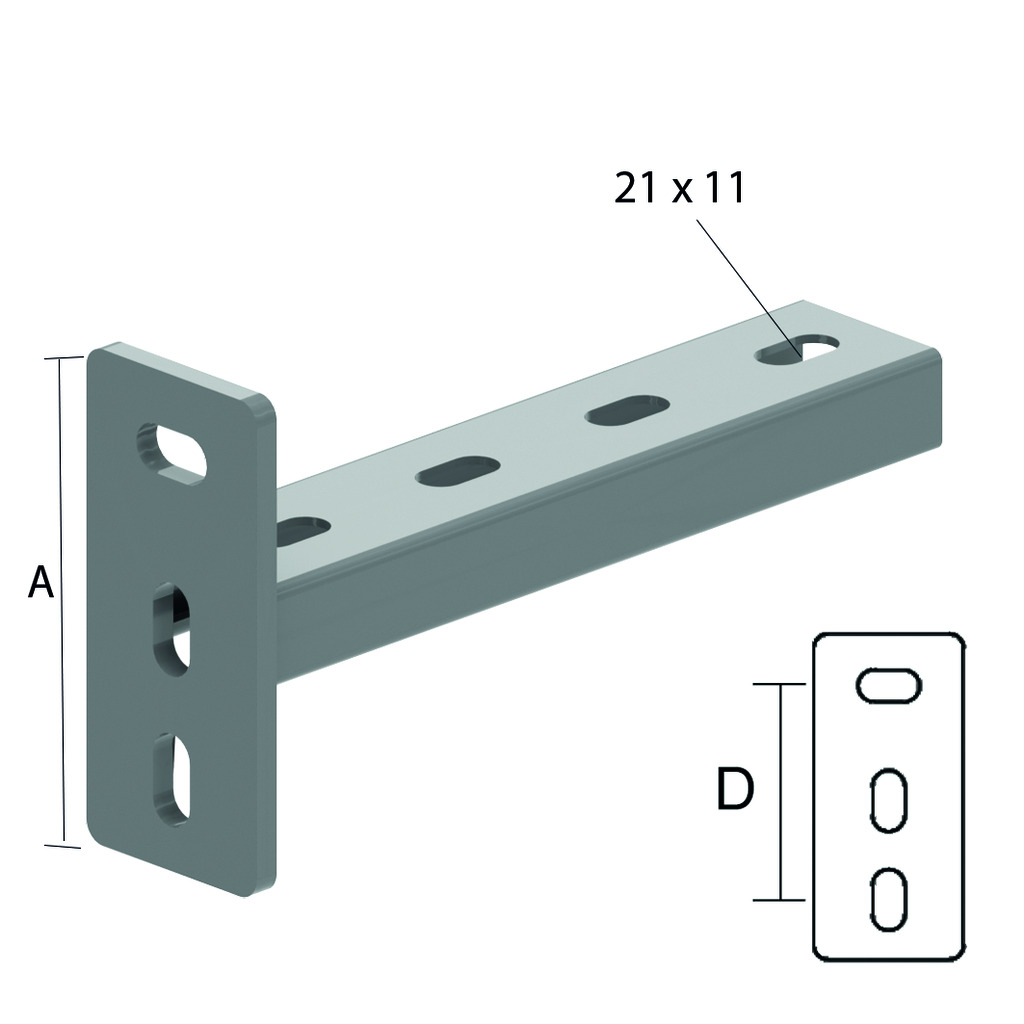

Bolt-on wall bracket MP41.41 - WKMP41.41




ETIM: EC000022


HDHDHDHDHDHD
HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
WKMP41.41.300 132 300   0.900 1 v STK
WKMP41.41.400 132 400   1.100 1 v STK
WKMP41.41.500 132 500   1.300 1 v STK
WKMP41.41.600 132 600   1.500 1 v STK
WKMP41.41.750 132 750   1.800 1 v STK
WKMP41.41.1000 132 1000   2.300 1 v STK

Standard finish

  • Standard finish Electro zinc-plated

Optional finish

  • Optional finish Hot-dip galvanised
To order per full packaging.
Max. load (in daN): uniformly distributed over complete width of cantilever brackets.

When used with cable ladders, please pay attention to the length.
Max. load (in daN) A D
WKMP41.41.300 500 132 93
WKMP41.41.400 350 132 93
WKMP41.41.500 275 132 93
WKMP41.41.600 200 132 93
WKMP41.41.750 180 132 93
WKMP41.41.1000 130 132 93
