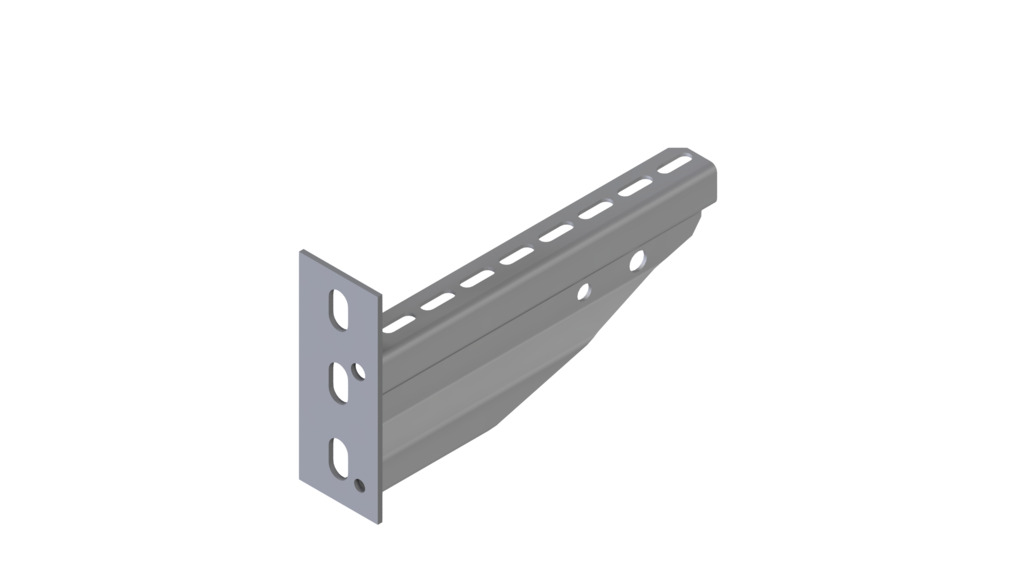

Bolt-on bracket MP41.41 for ceil. prof. - WKUMP41.41

ETIM: EC000022

HDHDHDHDHDHD

HD	Reference	mm	mm	mm	mm	kg m		Stock	Unit
WKUMP41.41.300	80	300			0.900	1	v	STK
WKUMP41.41.400	80	400			1.100	1	v	STK
WKUMP41.41.500	80	500			1.300	1	v	STK
WKUMP41.41.600	80	600			1.500	1	v	STK
WKUMP41.41.750	80	750			1.800	1	v	STK
WKUMP41.41.1000	80	1000			2.300	1	v	STK

HD Reference
mm
mm
mm
mm kg
m Stock Unit

Standard finish

Standard finish Electro zinc-plated

Optional finish

Optional finish Hot-dip galvanised

To order per full packaging.
Max. load (in daN): uniformly distributed over complete width of cantilever brackets.

	Max. load (in daN)	A
WKUMP41.41.300	400	80
WKUMP41.41.400	300	80
WKUMP41.41.500	240	80
WKUMP41.41.600	175	80
WKUMP41.41.750	160	80
WKUMP41.41.1000	90	80
