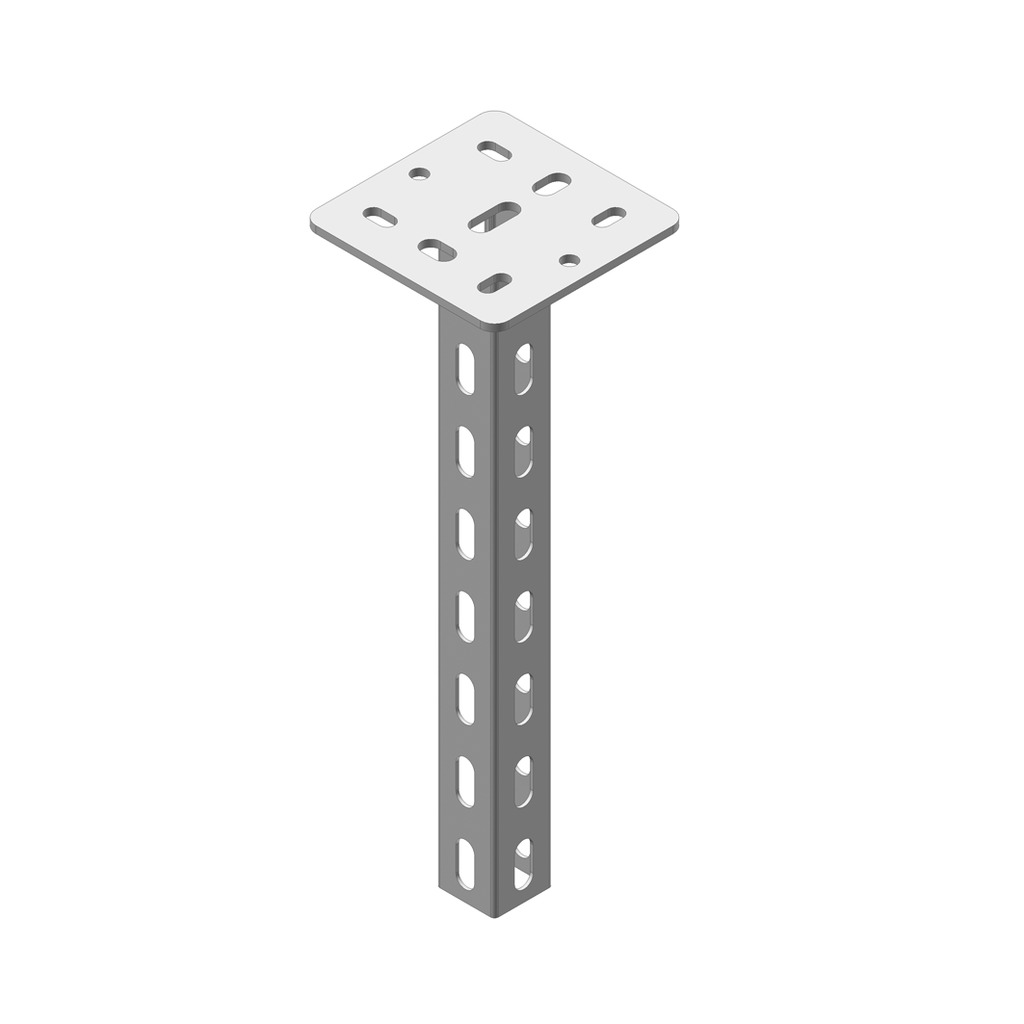

Double ceiling profile - HDHSLDCL

Ceiling profile: HDMP41.21
Welded headplate: 120x120 mm
Max. load: 1800 daN
Thickness head plate: 4 mm


ETIM: EC000082


--------
HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
HDHSLDCL200   210 1.000 20 v STK
HDHSLDCL300   300 1.230 1 v STK
HDHSLDCL400   420 1.480 1 v STK
HDHSLDCL500   510 1.700 1 v STK
HDHSLDCL600   600 1.900 1 v STK
HDHSLDCL800   810 2.250 1 v STK
HDHSLDCL1000   1020 2.900 1 v STK
HDHSLDCL1200   1200 3.340 1 v STK

Standard finish

  • Standard finish Hot-dip galvanised

Optional finish

  • Optional finish Duplex system

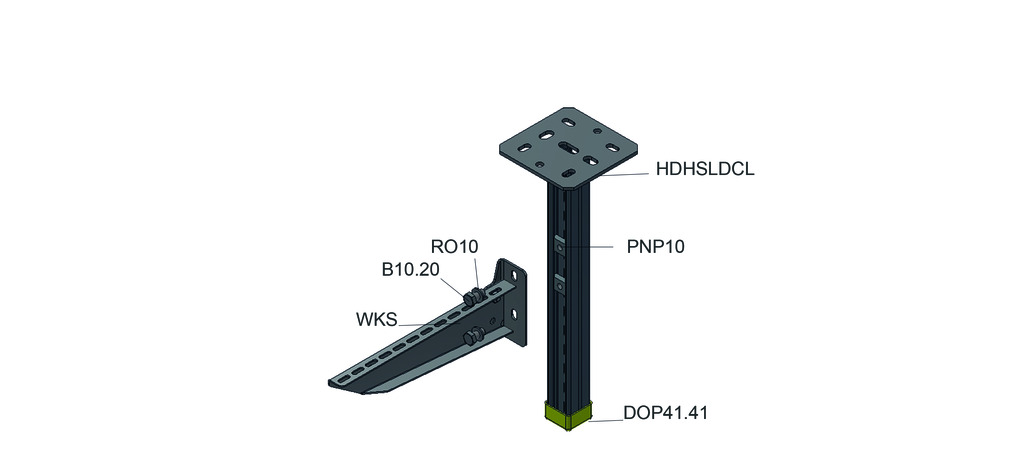

For single and double sided fixing of brackets WKS and HDWK.
Use sliding nut GM41M10 and hexagonal bolt B10.20.
Protection cap in yellow PVC : DOP41.41.

Technical info

Product datasheet

Mounting principle
