Single ceiling profile clippable - HDHSLECL

Ceiling profile: HDMP41.21
Welded headplate: 135x135 mm
Max. load: 1000 daN
Thickness head plate: 4 mm


ETIM: EC000082


HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
- HDHSLECL200 210 21 0.740 25 v STK
- HDHSLECL300 300 21 0.850 1 v STK
- HDHSLECL400 420 21 1.010 1 v STK
- HDHSLECL500 510 21 1.130 1 v STK
- HDHSLECL600 600 21 1.230 1 v STK
- HDHSLECL800 810 21 1.450 1 v STK
- HDHSLECL1000 1020 21 1.750 1 v STK
- HDHSLECL1200 1200 21 1.950 1 v STK

Standard finish

  • Standard finish Hot-dip galvanised

Optional finish

  • Optional finish Duplex system

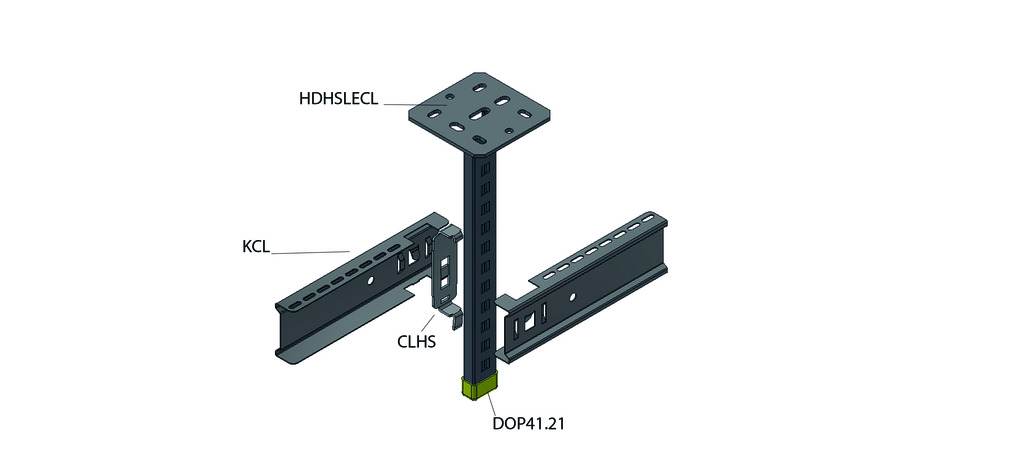

For single and double sided fixing of the bracket KCL and for single sided fixing of the other brackets WKS and HDWK using sliding nut PNP10 and hexagonal bolt B10.20.
Protection cap in yellow PVC: DOP41.21.

Technical info

Product datasheet

Mounting principle

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35
