Double ceiling profile - HSMD

Ceiling profile: MP41.41 double

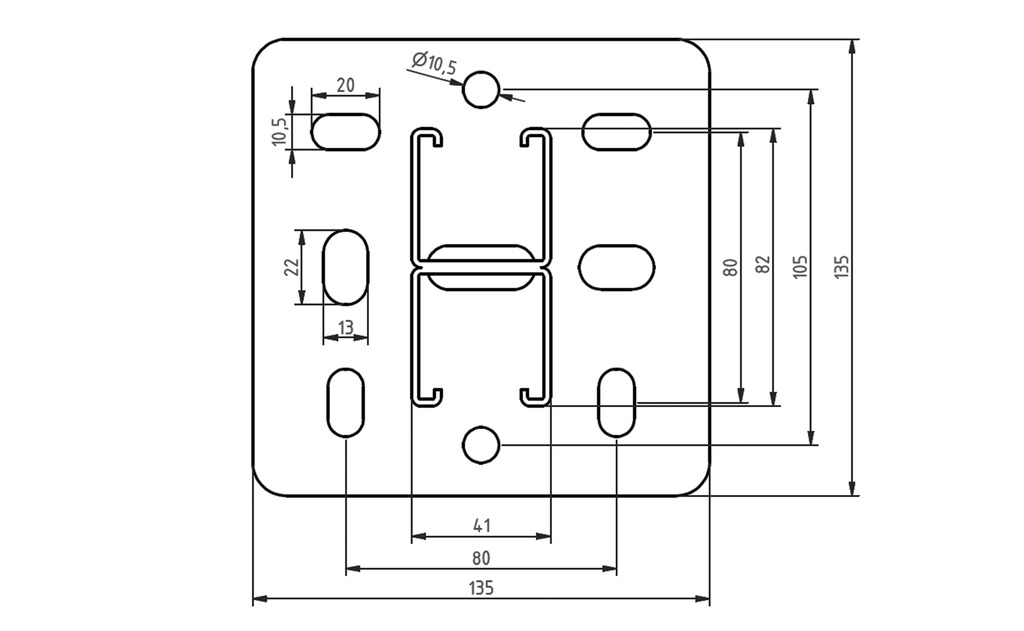

Welded headplate: 135x135 mm
Max. load: 3500 daN
Thickness head plate: 5 mm


ETIM: EC000022


HDHDHDHDHD
HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
HSMD200   200 1.600 15 v STK
HSMD300   300 2.150 1 v STK
HSMD400   400 2.650 1 v STK
HSMD500   500 3.300 1 v STK
HSMD600   600 3.900 1 v STK

Standard finish

  • Standard finish Electro zinc-plated

Optional finish

  • Optional finish Hot-dip galvanised
  • Optional finish Coating
For single and double sided fixing of brackets.
Use sliding nut GM41M10 and hexagonal bolt B10.30.
Protection cap in yellow PVC: DOP41.82

Technical info

Product datasheet

Mounting principle
