Single ceiling profile - HSMES

Ceiling profile: MP41.41S
Welded headplate: 120x120 mm
Max. load: 1800 daN


ETIM: EC000082


HDHDHDHDHDHDHDHDHD
HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
HSMES200   200 1.020 20 v STK
HSMES300   300 1.280 1 v STK
HSMES400   400 1.530 1 v STK
HSMES500   500 1.790 1 v STK
HSMES600   600 2.050 1 v STK
HSMES800   800 2.570 1 v STK
HSMES1000   1000 3.090 1 v STK
HSMES1200   1200 3.600 1 v STK
HSMES1500   1500 4.380 1 v STK

Standard finish

  • Standard finish Electro zinc-plated

Optional finish

  • Optional finish Hot-dip galvanised
  • Optional finish Coating

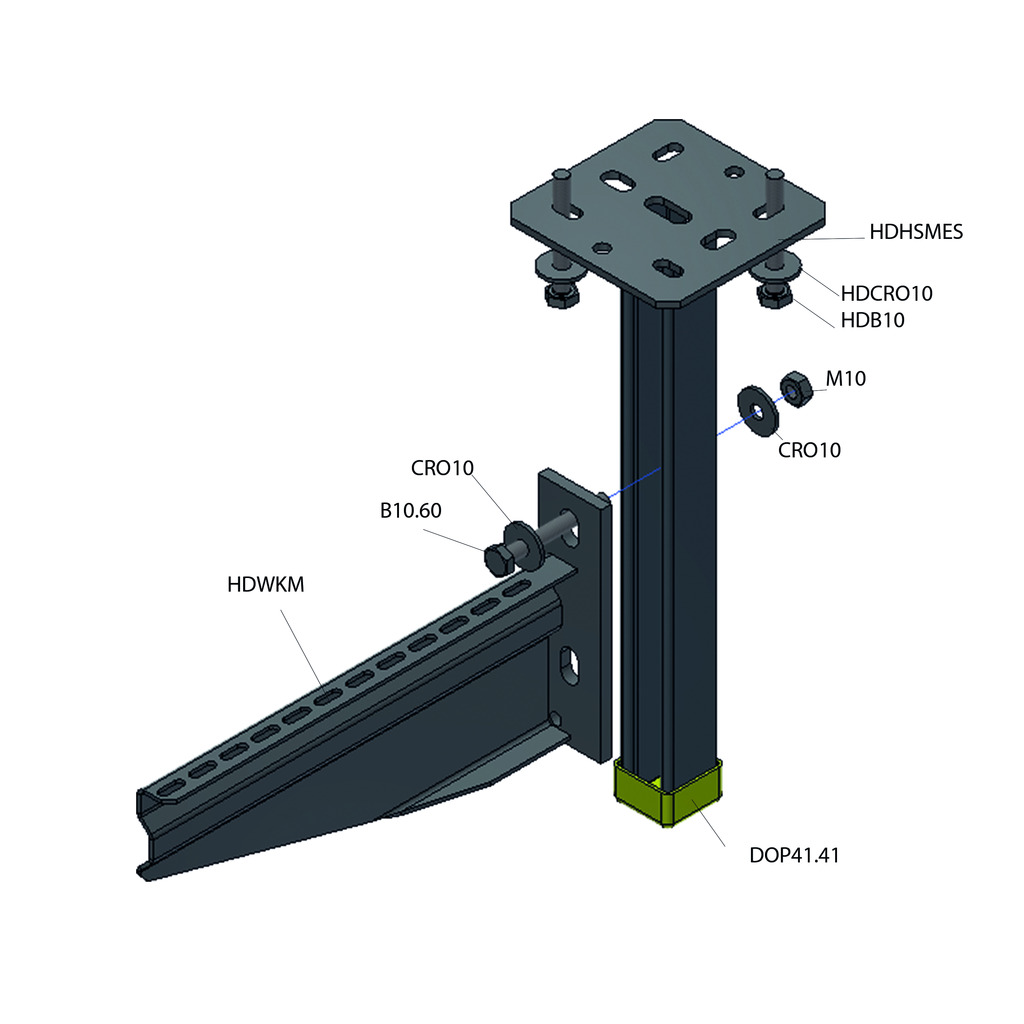

Also applicable for double mounting.
Use sliding nut GM41M10 and hexagonal bolt B10.30.
Protection cap in yellow PVC: DOP41.41.

Technical info

Product datasheet

Mounting principle
