Hinged headplate for HDIPE80S - HDSKIPE

To be mounted on HDIPE80S profile, max. angle of 35°.
Max. load: 2350 daN


ETIM: EC001567


-
HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
HDSKIPE   191 1.67 6 v STK

Standard finish

  • Standard finish Hot-dip galvanised

Optional finish

  • Optional finish Duplex system
To order per full packaging.

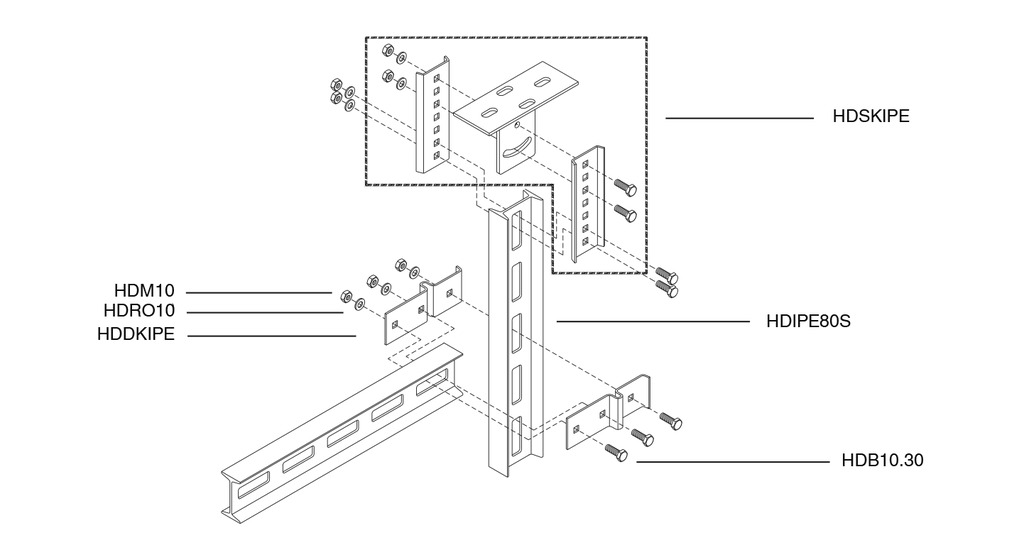

Included: 2x HDKPIPE, 2x bolt HDB10.30, 2x nut HDM10 and 2x HDRO10.

Technical info

Product datasheet

Mounting principle
