Wire cable tray for heavy duty - VFU60

Screen: 50 x 100 mm
Wire: Ø 4.50 mm and 5.50 mm


ETIM: EC000853


HDHDHDHDHDHD
HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
VFU60.100 60 99   3000 1.200 30 v M
VFU60.200 60 199   3000 1.430 30 v M
VFU60.300 60 299   3000 1.780 30 v M
VFU60.400 60 399   3000 2.120 30 v M
VFU60.500 60 499   3000 2.470 30 v M
VFU60.600 60 599   3000 2.810 30 v M

Standard finish

  • Standard finish Pre-galvanised

Optional finish

  • Optional finish Hot-dip galvanised
  • Optional finish Coating

Technical info

Product datasheet

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

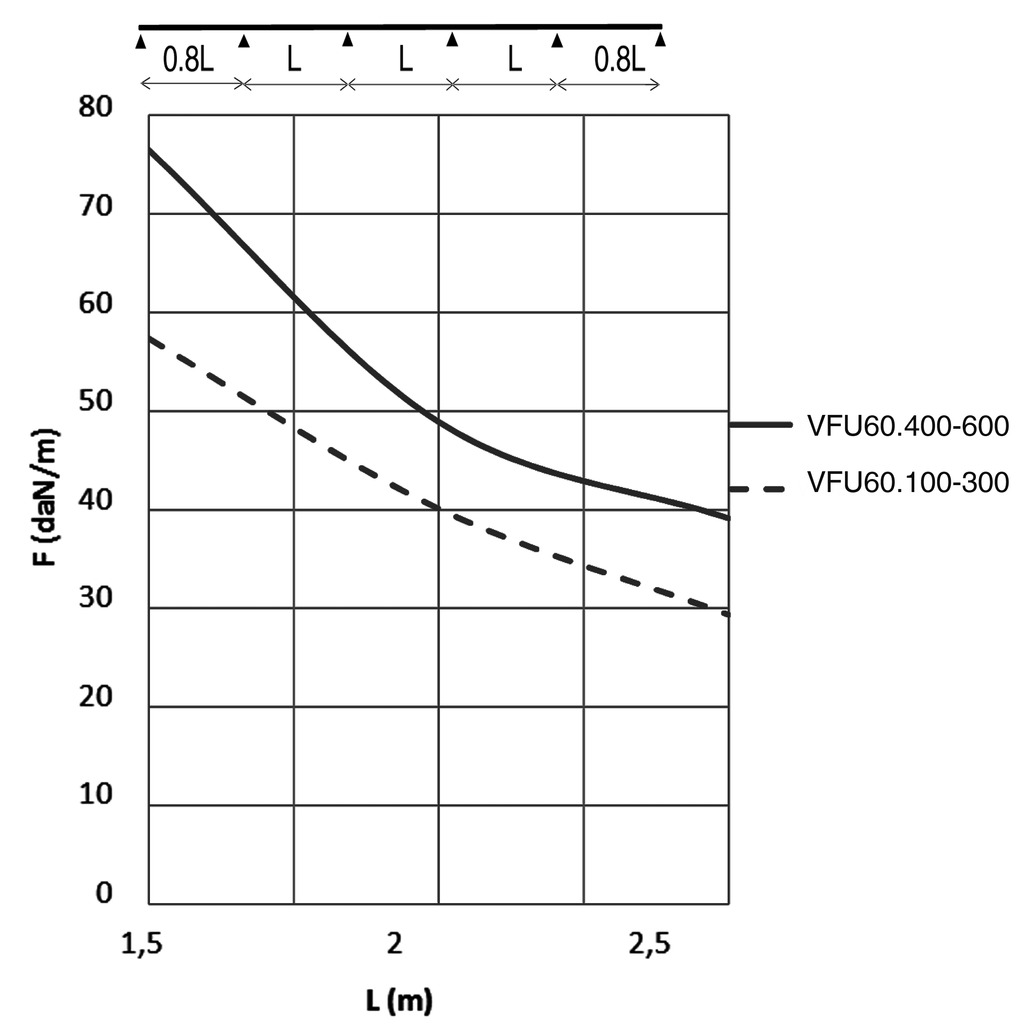

Load diagram

VFU60 LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 with connection to 1/5 of the span and the end span = 0,8x the span. When the joint is situated in the centre of the span, a reduction of 0,7x the admissible load is to be taken into account.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
