Wire cable tray - VFUL35

Screen: 50 x 100 mm
Cross-wire: Ø 3.50 mm
Lengthwise wire: Ø 4.50 mm


ETIM: EC000853


HDHDHDHDHDHD
HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
VFUL30.065 30 65   3000 0.530 15 v M
VFUL35.100 35 95   3000 0.570 30 v M
VFUL35.150 35 146   3000 0.830 30 v M
VFUL35.200 35 196   3000 0.870 30 v M
VFUL35.250 35 245   3000 1.030 30 v M
VFUL35.350 35 345   3000 1.330 30 v M

Standard finish

  • Standard finish Pre-galvanised

Optional finish

  • Optional finish Hot-dip galvanised
  • Optional finish Coating
VFUL30.065 coupling only with VFK.

Technical info

Product datasheet

Questions?

For more info, please contact

export@vergokan.com
+32 55 31 83 35

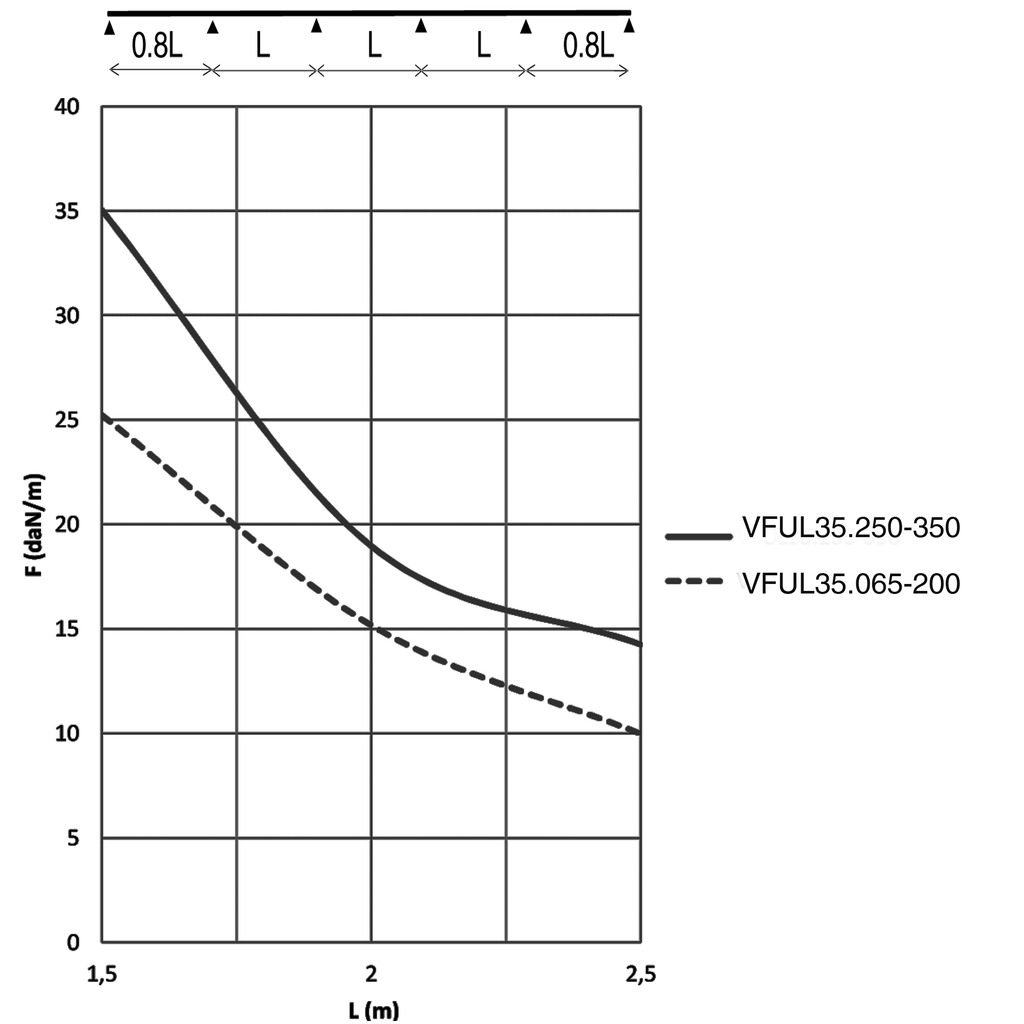

Load diagram

VFUL35 LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 with connection to 1/5 of the span and the end span = 0,8x the span. When the joint is situated in the centre of the span, a reduction of 0,7x the admissible load is to be taken into account.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
