Wire cable tray - VFUL60

Screen: 50 x 100 mm
Cross-wire: Ø 3.50 mm
Lengthwise wire: Ø 4.50 mm


ETIM: EC000853


HD Reference
mm
mm
mm
mm 		kg
m 		Stock Unit
- VFUL60.050 60 50 3000 0.570 30 v M
- VFUL60.100 60 96 3000 0.830 30 v M
- VFUL60.150 60 146 3000 0.870 30 v M
- VFUL60.200 60 197 3000 1.030 30 v M
- VFUL60.300 60 297 3000 1.330 30 v M
- ZAVFUL60.050 60 50 3000 0.570 30 M
- ZAVFUL60.100 60 100 3000 0.830 30 M
- ZAVFUL60.150 60 146 3000 0.870 30 M
- ZAVFUL60.200 60 197 3000 1.030 30 M
- ZAVFUL60.300 60 297 3000 1.330 30 M

Standard finish

  • Standard finish Pre-galvanised

Optional finish

  • Optional finish zinc aluminium
  • Optional finish Coating
NEW
Our VFUL60 wire cable tray is now available in zinc aluminium (ZA). This coating offers a corrosion protection at least as long as the standard hot dip galvanizing process.
Zinc aluminum (ZA) is identified with a small plate.
Usable inside height: outside height - 7mm
Usable inside width: outside width - 15mm

Fix with:

VFKS
Support joiner for VFU(L)
VFKS
KPVF
Snap-on joiner for VFU(L)
KPVF
VFK
Joining clamp
VFK

Technical info

Product datasheet

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

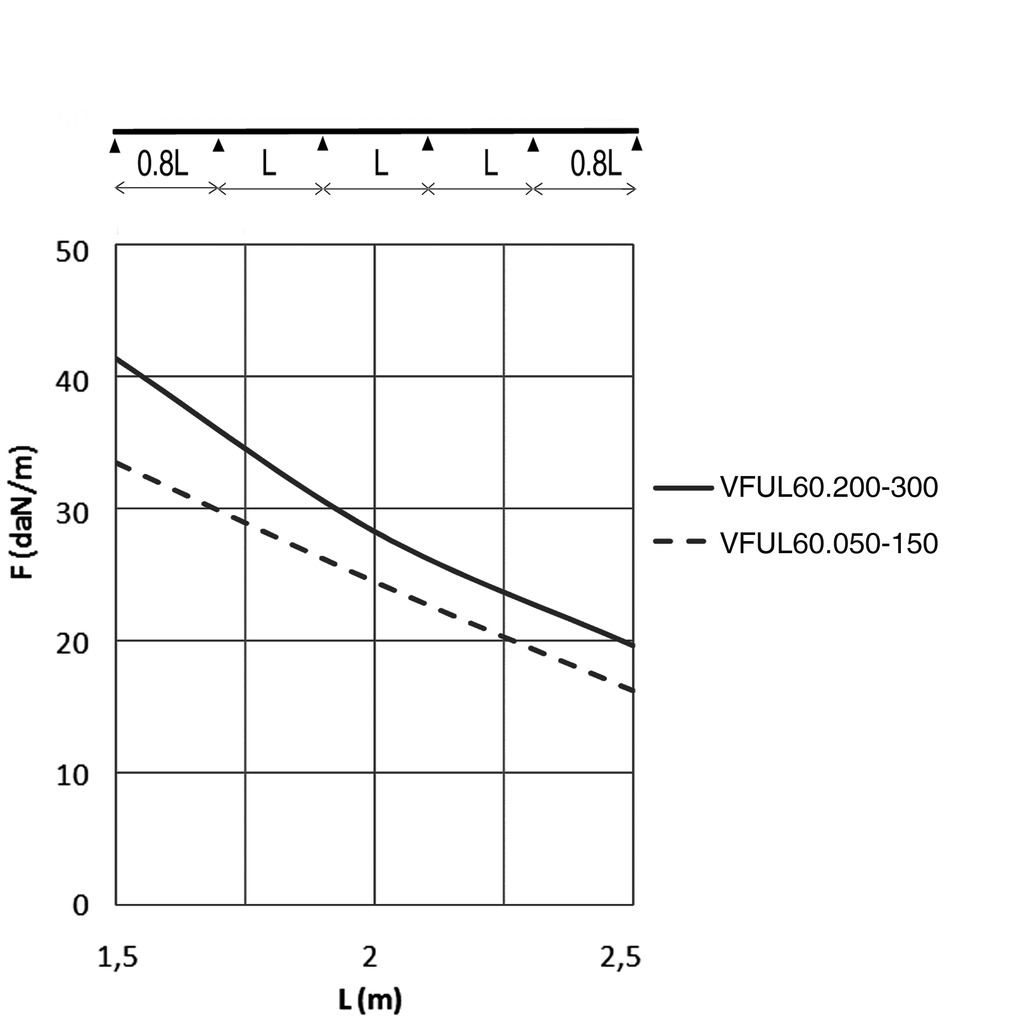

Load diagram

VFUL60 LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 with connection to 1/5 of the span and the end span = 0,8x the span. When the joint is situated in the centre of the span, a reduction of 0,7x the admissible load is to be taken into account.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
