Perforated cable tray - KBS60

Alternative perforation
Return flanges


ETIM: EC000047


HDHDHDHDHDHDHDHDHDHDHDHDHDHDHDHDHD
HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
KBS60.050.075 60 50 0.75 3000 0.930 60 v M
KBS60.050.100 60 50 1 3000 1.240 60 v M
KBS60.075.125 60 75 1.25 3000 1.750 60 v M
KBS60.100.125 60 100 1.25 3000 1.950 60 v M
KBS60.100.150 60 100 1.5 3000 2.350 60 v M
KBS60.150.125 60 150 1.25 3000 2.360 30 v M
KBS60.150.150 60 150 1.5 3000 2.830 30 v M
KBS60.200.125 60 200 1.25 3000 2.770 30 v M
KBS60.200.150 60 200 1.5 3000 3.320 30 v M
KBS60.300.125 60 300 1.25 3000 3.580 30 v M
KBS60.300.150 60 300 1.5 3000 4.300 30 v M
KBS60.400.125 60 400 1.25 3000 4.400 30 v M
KBS60.400.150 60 400 1.5 3000 5.280 30 v M
KBS60.500.125 60 500 1.25 3000 5.210 30 v M
KBS60.500.150 60 500 1.5 3000 6.250 30 v M
KBS60.600.125 60 600 1.25 3000 6.030 30 v M
KBS60.600.150 60 600 1.5 3000 7.230 30 v M

Standard finish

  • Standard finish Pre-galvanised

Optional finish

  • Optional finish Hot-dip galvanised
  • Optional finish Coating
Round holes of Ø 16 mm and Ø 19.5 mm provided as opening for the fitting of a gland.
KBS60.050.075 and KBS60.050.100: No knock-out facility (pre-shaped holes).

Technical info

Load diagram

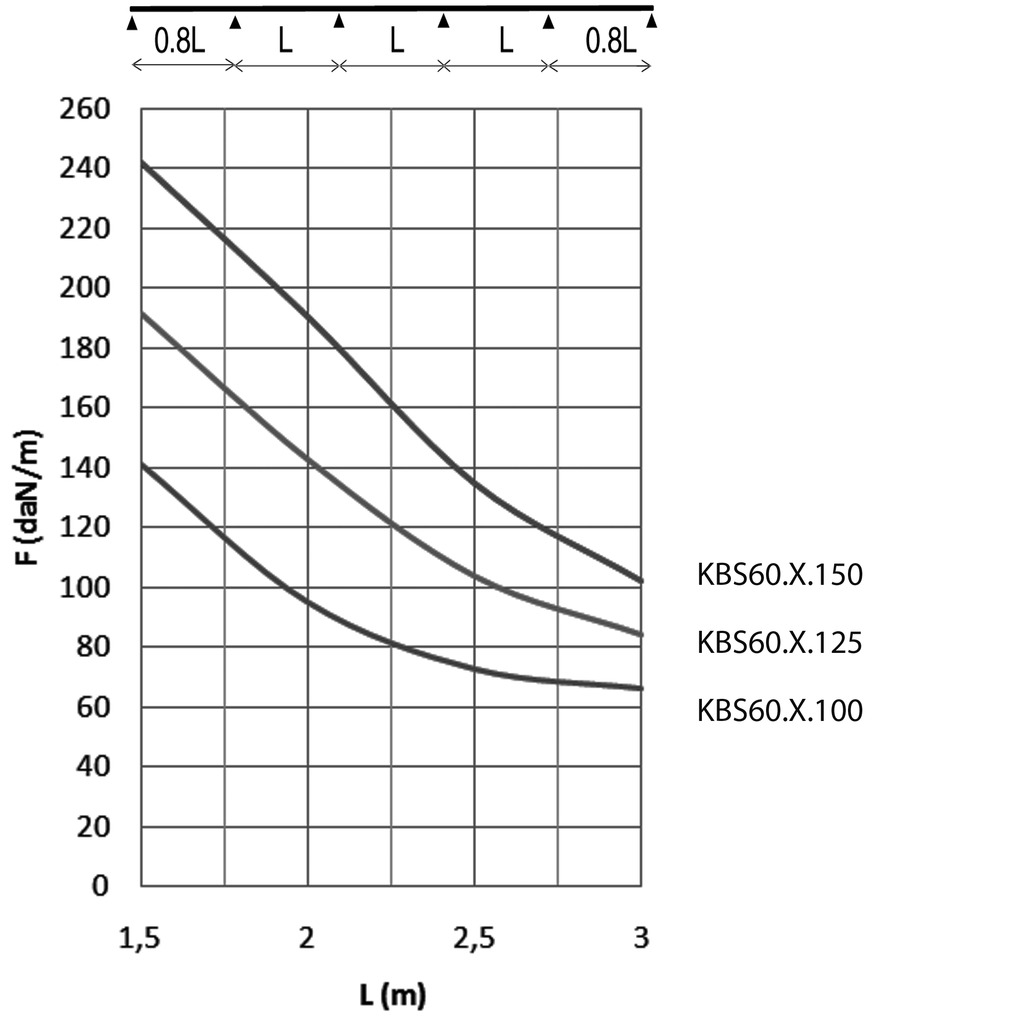

KBS60 LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 with connection in the centre of the span and the end span = 0,8 x the span. For widths of 300 and up, it is advised to use a stiffening plate.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
