Bout (DIN 933) - B

ETIM: EC003861

Artikel	mm	mm	mm	mm	kg m		Eenh.
B6.20			M6	20	0.006	100	STK
B6.30			M6	30	0.008	100	STK
B8.20			M8	20	0.012	100	STK
B8.30			M8	30	0.016	100	STK
B8.40			M8	40	0.019	100	STK
B8.50			M8	50	0.022	100	STK
B8.70			M8	70	0.028	100	STK
B10.20			M10	20	0.021	100	STK
B10.30			M10	30	0.027	100	STK
B10.40			M10	40	0.033	100	STK
B10.80			M10	80	0.053	100	STK
B12.20			M12	20	0.034	100	STK
B12.30			M12	30	0.040	100	STK
B12.40			M12	40	0.047	100	STK
B12.50			M12	50	0.058	100	STK

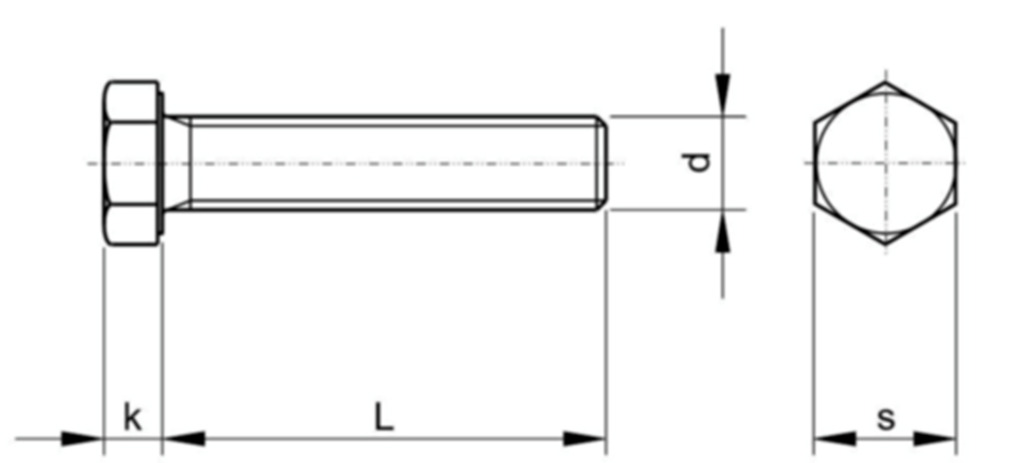

Referentie	d	k	L	s
B6.20	6	4	20	10
B6.30	6	4	30	10
B8.20	8	5.3	20	13
B8.30	8	5.3	30	13
B8.40	8	5.3	40	13
B8.50	8	5.3	50	13
B8.70	8	5.3	70	13
B10.20	10	6.4	20	17
B10.30	10	6.4	30	17
B10.40	10	6.4	40	17
B10.80	10	6.4	80	17
B12.20	12	7.5	20	19
B12.30	12	7.5	30	19
B12.40	12	7.5	40	19
B12.50	12	7.5	50	19
