Cable Tray Clickable - KBSCL60

Clicking ends
Alternative perforations
Return flanges


ETIM: EC000047


Reference Finish
mm
mm
mm
mm 		kg
m 		Stock Unit
KBSCL60.075.075 SZ 60 75 0.75 3000 1.032 60 v M
KBSCL60.075.100 SZ 60 75 1 3000 1.324 60 v M
KBSCL60.100.060 SZ 60 100 0.60 3000 1.033 60 v M
KBSCL60.100.075 SZ 60 100 0.75 3000 1.200 60 v M
KBSCL60.100.100 SZ 60 100 1 3000 1.535 60 v M
KBSCL60.150.075 SZ 60 150 0.75 3000 1.462 30 v M
KBSCL60.150.100 SZ 60 150 1 3000 1.869 30 v M
KBSCL60.200.060 SZ 60 200 0.60 3000 1.487 30 v M
KBSCL60.200.075 SZ 60 200 0.75 3000 1.723 30 v M
KBSCL60.200.100 SZ 60 200 1 3000 2.199 30 v M
KBSCL60.300.060 SZ 60 300 0.60 3000 1.924 30 v M
KBSCL60.300.075 SZ 60 300 0.75 3000 2.234 30 v M
KBSCL60.300.100 SZ 60 300 1 3000 2.853 30 v M
KBSCL60.400.075 SZ 60 400 0.75 3000 2.779 30 v M
KBSCL60.400.100 SZ 60 400 1 3000 3.545 30 v M
KBSCL60.500.100 SZ 60 500 1 3000 4.170 30 v M
KBSCL60.600.100 SZ 60 600 1 3000 4.820 30 v M
ZMKBSCL60.075.075 DF 60 75 0.75 3000 1.032 60 M
ZMKBSCL60.075.100 DF 60 75 1 3000 1.324 60 M
ZMKBSCL60.100.075 DF 60 100 0.75 3000 1.200 60 M
ZMKBSCL60.100.100 DF 60 100 1 3000 1.535 60 M
ZMKBSCL60.150.075 DF 60 150 0.75 3000 1.462 30 M
ZMKBSCL60.150.100 DF 60 150 1 3000 1.869 30 M
ZMKBSCL60.200.075 DF 60 200 0.75 3000 1.723 30 M
ZMKBSCL60.200.100 DF 60 200 1 3000 2.199 30 M
ZMKBSCL60.300.075 DF 60 300 0.75 3000 2.234 30 M
ZMKBSCL60.300.100 DF 60 300 1 3000 2.853 30 M
ZMKBSCL60.400.075 DF 60 400 0.75 3000 2.779 30 v M
ZMKBSCL60.400.100 DF 60 400 1 3000 3.545 30 M
ZMKBSCL60.500.100 DF 60 500 1 3000 4.170 30 v M
ZMKBSCL60.600.100 DF 60 600 1 3000 4.820 30 M

Standard finish

  • Standard finish Pre-galvanised

Optional finish

  • Optional finish
  • Optional finish Coating
Our KBSCL cable tray is now available in Defender. Thanks to its unique chemical composition Defender offers a resistance against corrosion equivalent to standard hot-dipped steel.

Other lengths upon request: min. 1.95 m / max. 6 m in 150 mm steps.
FEATURES
- Clickable.
- The simplest jointing system, with a single movement.
- Rapid - Just click and ready for the next joint. Immediate alignment at the same time.
- Strong - As strong as a bolted joint.
- Reliable - Maximum load with snap-fit joint. Multiple jointing options available.
- Cost-effective - Working faster results in immediate time and cost savings.
- High standard - Wide and complete range of accessories available.

Etched perforations for:
- better stability
- extra load-bearing capacity
- better cooling

Longitudinal and transverse perforations for:
- better fixing to the support
- convenient cable bundling

Additional equipotential bonding available by 1. snap-fit joint, 2. bolted joint and 3. push-through lip in the bottom.
TECHNICAL INFORMATION
Perforation pattern varies according to width.
Transverse perforation as from 200 mm width.
16 mm dia. and 20.4 mm dia. openings to be provided for fitting a gland.
SLIS60 snap-in partition to suit width as from 75 mm every 50 mm in the width direction.
Can be secured with VM6.10 or KBVCL as an option.

Technical info

Product datasheet

Mounting principle

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

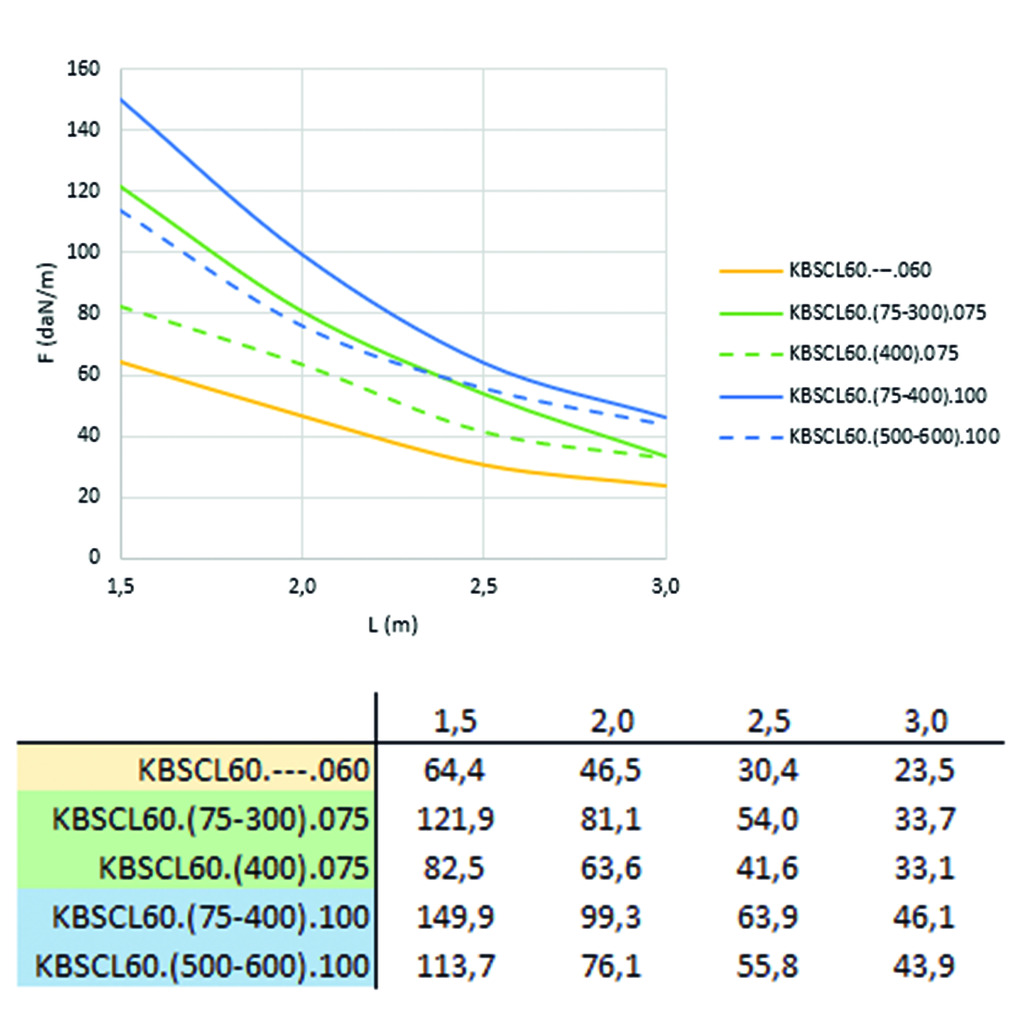

Load diagram

KBSCL60 LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 with connection in the centre of the span and the end span = 0,8 x the span.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
