Cable Tray Clickable - KBSCL60.2

Clicking ends
Alternative perforations
Return flanges


ETIM: EC000047


Reference
mm
mm
mm
mm 		kg
m 		Stock Unit
KBSCL60.100.75.2 60 100 0.75 1950 1.200 540 M
KBSCL60.200.75.2 60 200 0.75 2000 1.723 300 M
KBSCL60.300.75.2 60 300 0.75 2000 2.234 204 M
KBSCL60.400.10.2 60 400 1 2000 3.545 152 M

Standard finish

  • Standard finish Pre-galvanised
FEATURES
- Clickable.
- The simplest jointing system, with a single movement.
- Rapid - Just click and ready for the next joint. Immediate alignment at the same time.
- Strong - As strong as a bolted joint.
- Reliable - Maximum load with snap-fit joint. Multiple jointing options available.
- Cost-effective - Working faster results in immediate time and cost savings.
- High standard - Wide and complete range of accessories available.

Etched perforations for:
- better stability
- extra load-bearing capacity
- better cooling

Longitudinal and transverse perforations for:
- better fixing to the support
- convenient cable bundling

Additional equipotential bonding available by 1. snap-fit joint, 2. bolted joint, 3. push-through lip in the bottom.

Technical info

Product datasheet

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

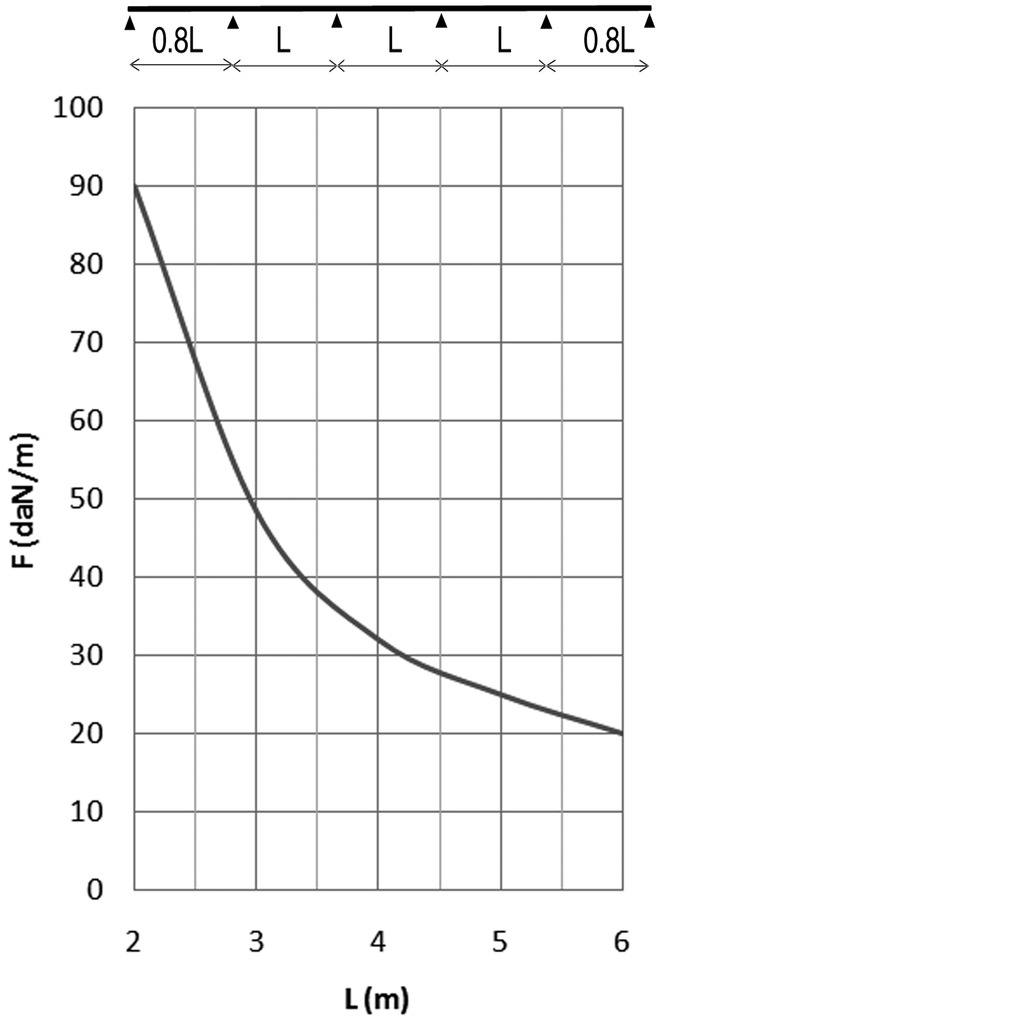

Load diagram

KBSCL60.6 To order per full packaging.

LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 with connection in the centre of the span and the end span = 0,8 x the span.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
