KGI with SIN - KGI60S

Not perforated
Return flanges
To order: Height 35 mm


ETIM: EC000047


HD Reference
mm
mm
mm
mm 		kg
m 		Stock Unit
- KGI60.300.125S12 60 300 1.25 3000 4.811 30 M
- KGI60.300.125S13 60 300 1.25 3000 4.811 30 M
- KGI60.300.125S23 60 300 1.25 3000 5.322 30 M
- KGI60.400.125S12 60 400 1.25 3000 5.811 30 M
- KGI60.400.125S13 60 400 1.25 3000 5.811 30 M
- KGI60.400.125S23 60 400 1.25 3000 6.322 30 M
- KGI60.500.125S12 60 500 1.25 3000 6.811 30 M
- KGI60.500.125S13 60 500 1.25 3000 6.811 30 M
- KGI60.500.125S23 60 500 1.25 3000 7.322 30 M
- KGI60.600.125S12 60 600 1.25 3000 7.811 30 M
- KGI60.600.125S13 60 600 1.25 3000 7.811 30 M
- KGI60.600.125S23 60 600 1.25 3000 8.322 30 M

Standard finish

  • Standard finish Pre-galvanised
S12: one partition in the middle of the cable tray
S13: one partition at right or the left of the cable tray
S23: two partitions
For widths > 400 in combination with a cover: Please state explicitly in the order.

Fix with:

KBV
Fast locking for KBSI
KBV
VM
Toothed round head bolt / flange nut
VM

Technical info

Product datasheet

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

Load diagram

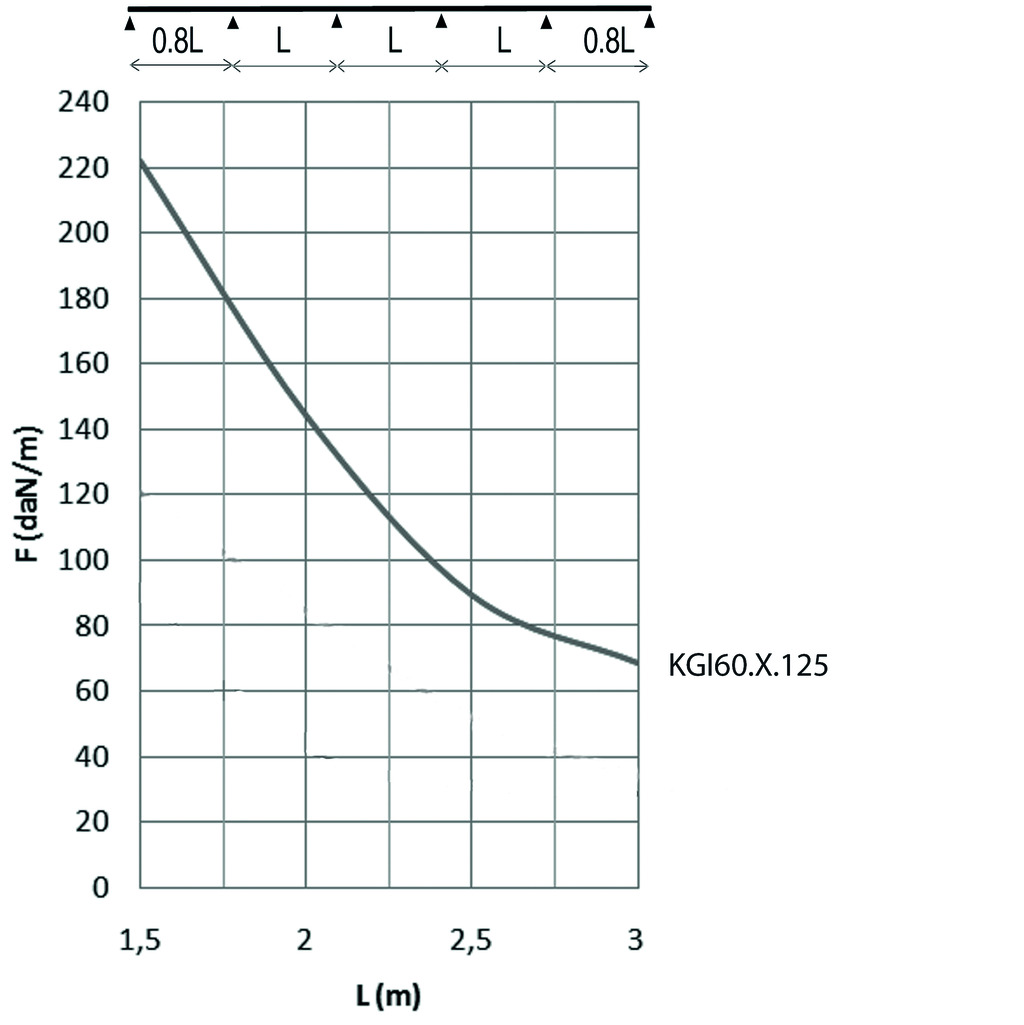

KGI60S LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 with connection in the centre of the span and the end span = 0,8 x the span.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
