Wire cable tray for heavy duty - VFU85

Screen: 50 x 100 mm
Wire: Ø 4.50 mm and 5.50 mm


ETIM: EC000853


HD Reference
mm
mm
mm
mm 		kg
m 		Stock Unit
HD VFU85.150 85 148 3000 1.430 30 M
HD VFU85.250 85 248 3000 1.780 30 M
HD VFU85.350 85 348 3000 2.120 30 M
HD VFU85.450 85 448 3000 2.470 30 M
- ZAVFU85.150 85 150 3000 1.43 30 M
- ZAVFU85.250 85 250 3000 1.78 30 M
- ZAVFU85.350 85 350 3000 2.12 30 M
- ZAVFU85.450 85 450 3000 2.47 30 M

Standard finish

  • Standard finish Pre-galvanised

Optional finish

  • Optional finish Hot-dip galvanised
  • Optional finish Coating
Usable inside height: outside height - 9mm
Usable inside width: outside width - 17mm

Fix with:

KPVF
Snap-on joiner for VFU(L)
KPVF
VFK
Joining clamp
VFK

Technical info

Product datasheet

Questions?

For more info, please contact

vergokanexport@atkore.com
+32 55 31 83 35

Load diagram

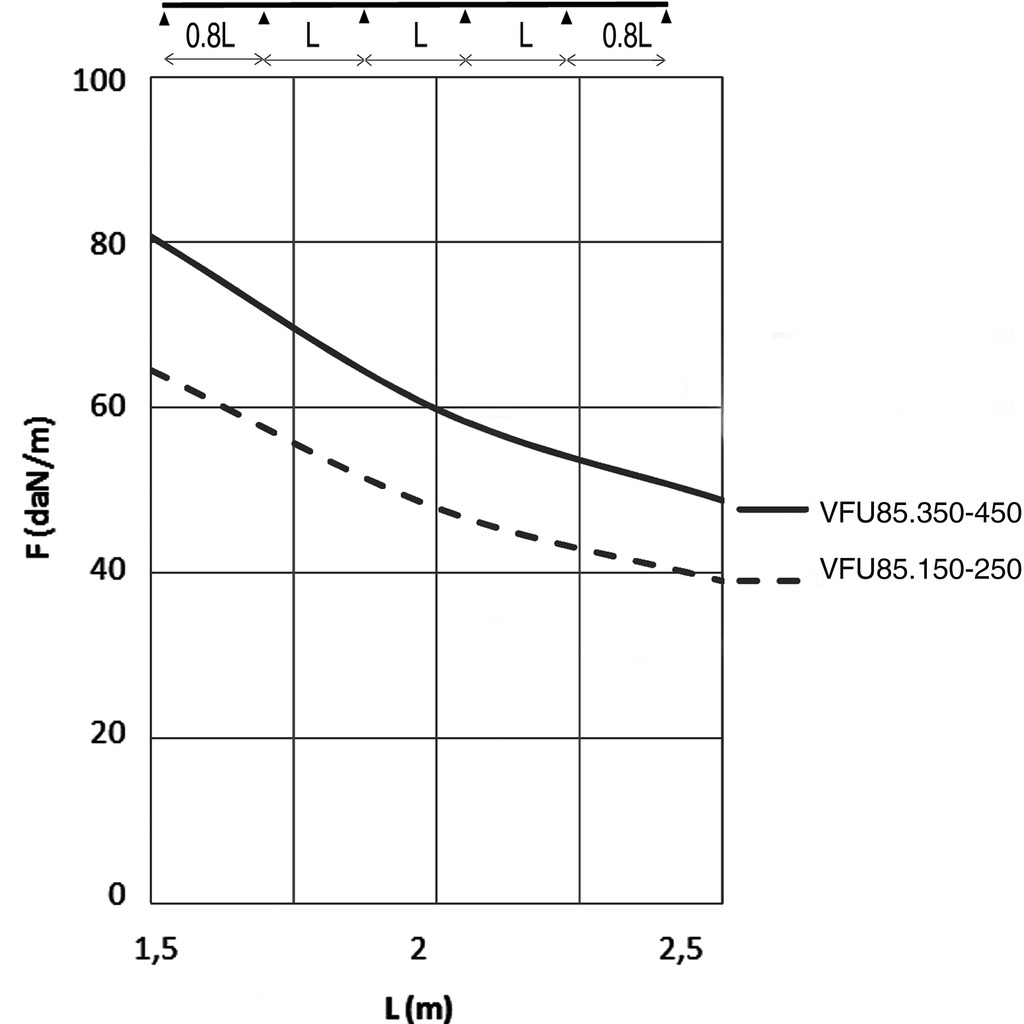

VFU85 LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 with connection to 1/5 of the span and the end span = 0,8x the span. When the joint is situated in the centre of the span, a reduction of 0,7x the admissible load is to be taken into account.

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
